Items Description

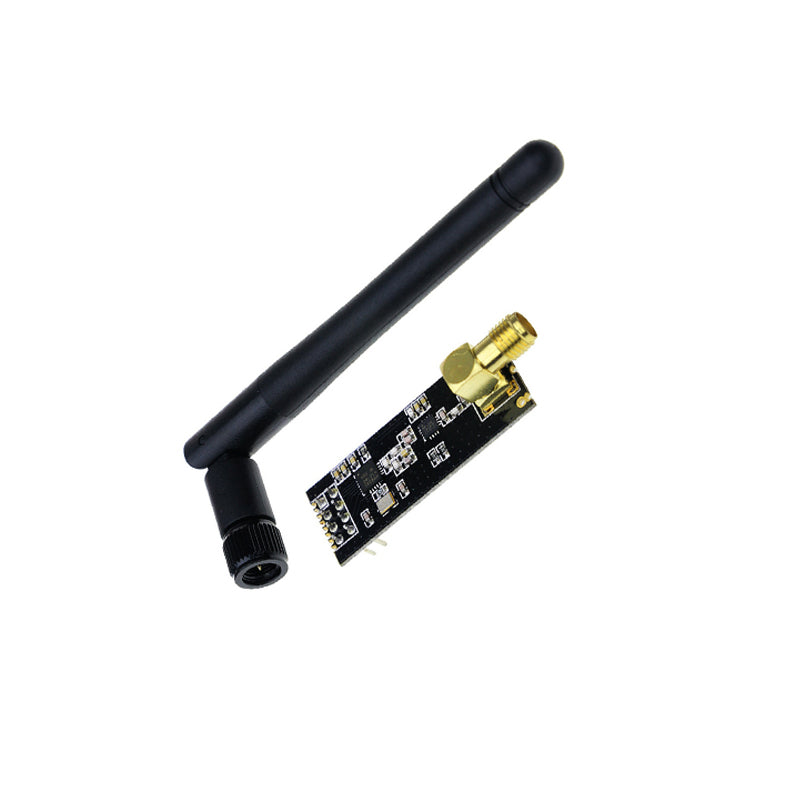

Features of 2.4GHz 1100 Meters Long Distance NRF24L01+PA+LNA Wireless Module With Antenna:

• Voltage: 3-3.6V.
• Max output power: +20 dBm.
• Working current in transmit mode: 115mA.
• Working current in receiver mode: 45mA.
• Current in mode: 4.2uA.
• Operating temperature: -20-70 degree.
• Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode.
• PA growth: 20dB.
• LAN growth: 10dB.
• LAN noise figure: 2.6dB.
• Antenna growth: 2dBI.
• 2M rate: 520m.
