Description

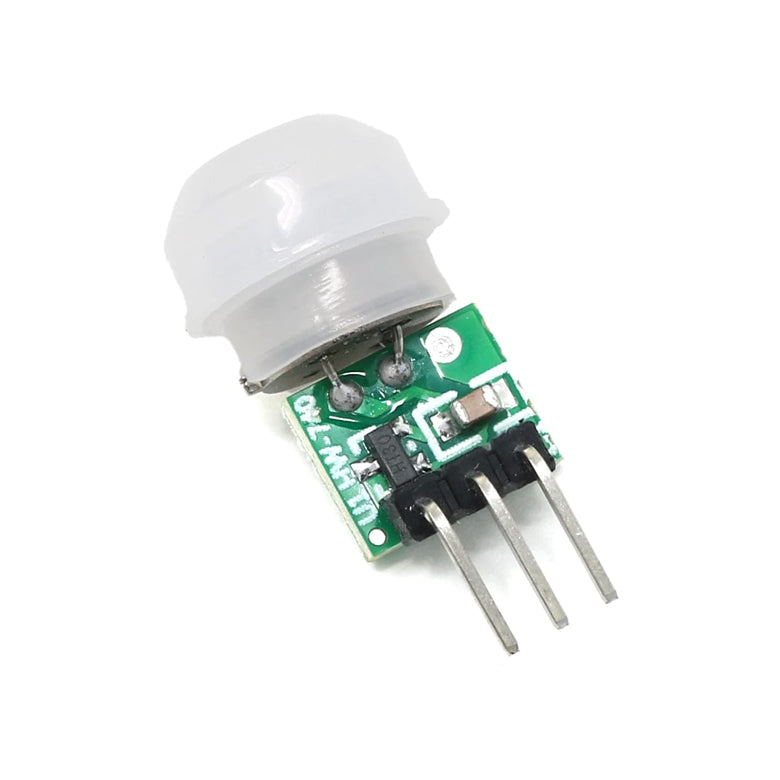

Mini PIR Motion Sensor Module
This motion sensor is a mini version of the standard PIR sensor that we sell. This type of sensor can be used to detect movement by means of infrared light.
- Input Voltage: DC 2.7-12V
- Quiescent current: <100uA
- Level output: High 3.3 V/Low 0V
- Delay time: approximately 2 seconds (± 30% deviation)
- Standard detection at approximately 3 meters distance
- PCB dimensions: 10mm*8mm
- Total size: 12mm*27mm
- Angle of Sensor: <100 °
- Working temperature: -20°C – +60°C
- Lens type: Small
