Items Description

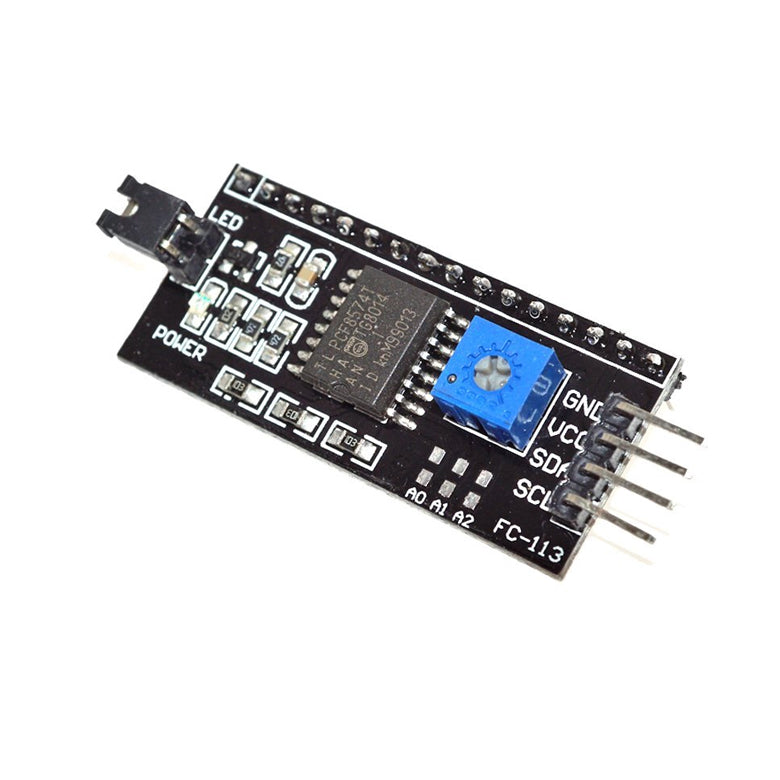

This is another great IIC/I²C/TWI/SPI Serial Interface. As the pin resources of controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I²C interface module, you will be able to realize data display via only 2 wires. If you already has I²C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for based project.

• I²C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself)
• The backlight and contrast is adjusted by potentiometer
• Comes with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
• I²C Address: 0x27 (I²C Address: 0X20~0X27 (the original address is 0X27,you can change it yourself)

Specifications

• Compatible for 1602 LCD
• Supply voltage: 5 V
• Weight: 5 g
• Size: 5.5 x 2.3 x 1.4 cm
