Description

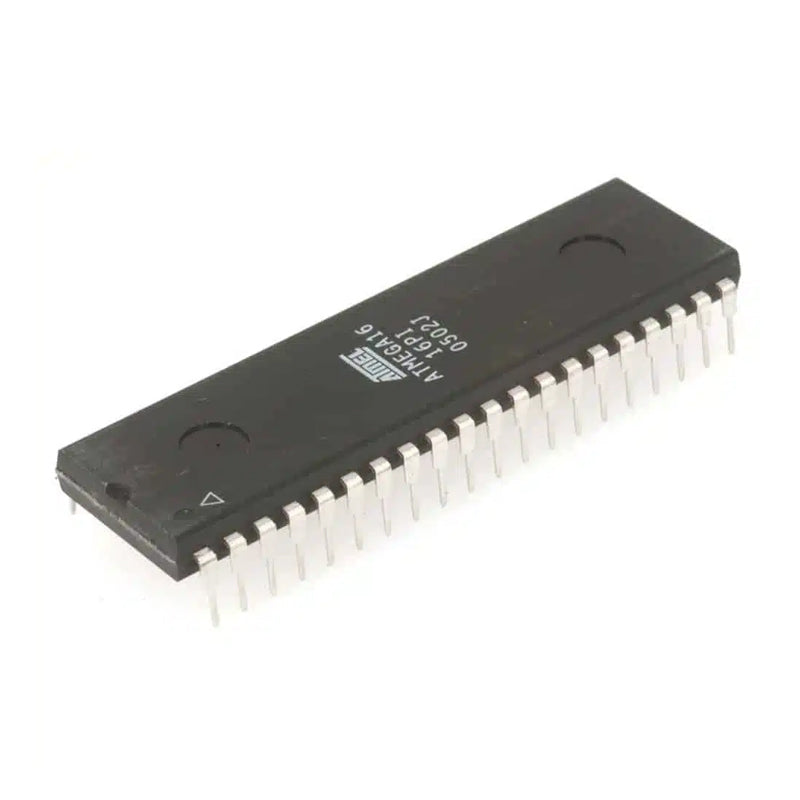

Microcontroller based on the AVR RISC architecture.
Max CPU operating frequency: 16MHz
Flash: 16kB
RAM: 1kB
EEPROM: 512B

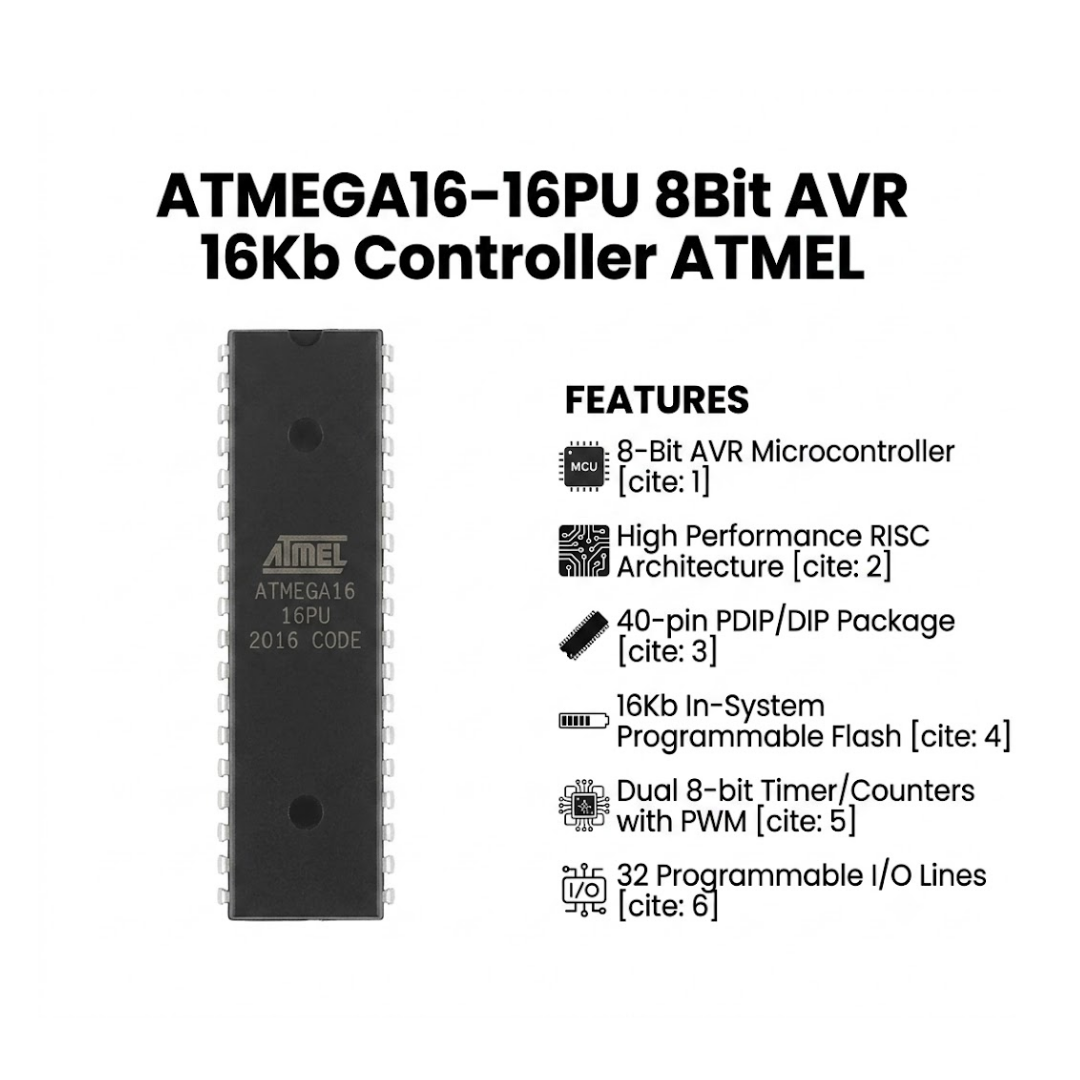

Features
* Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
* One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
* Real Time Counter with Separate Oscillator
* Four PWM Channels
* 8-channel, 10-bit ADC
* Byte-oriented Two-wire Serial Interface
* Programmable Serial USART
* Master/Slave SPI Serial Interface
* Programmable Watchdog Timer with Separate On-chip Oscillator
* On-chip Analog Comparator
* Power-on Reset and Programmable Brown-out Detection
* Internal Calibrated RC Oscillator
* External and Internal Interrupt Sources
* Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
* 32 Programmable I/O Lines
* Operating Voltages: 4.5V – 5.5V
* Temperature Range: Industrial (-40° to +85°C)
