Description
Features of the lithium battery protection board

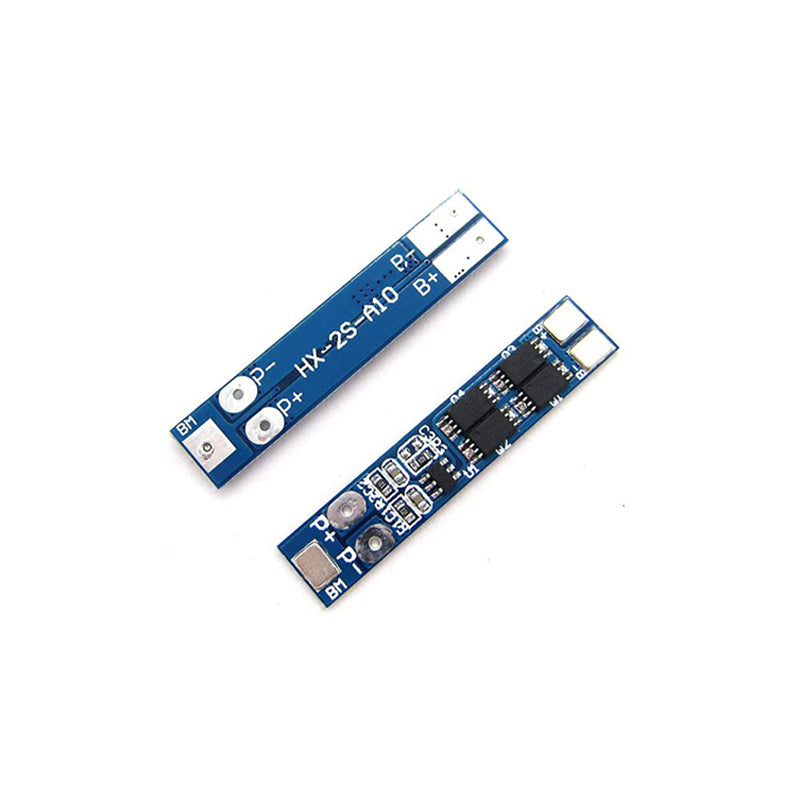

Model: HX – 2S – A10
Size: 41 * 8 * 2.2 mm
Maximum working current: 8 A
Maximum instantaneous current: 16 A
Static current: less than 10uA
Resistance: less than 300 m Ω
Charging voltage: 8.4 v-9v
Overcharging range: 4.25-4.35 v plus or minus 0.05 v
Over voltage range: 2.5-3.0 v plus or minus 0.05 v
Working temperature: – 40 – + 50 ℃
Storage conditions: – 40 – + 80 ℃
Effective life: more than 50,000 hours
Short circuit protection: to protect and restore must charge
Size is 41 * 8 * 2.2 mm
